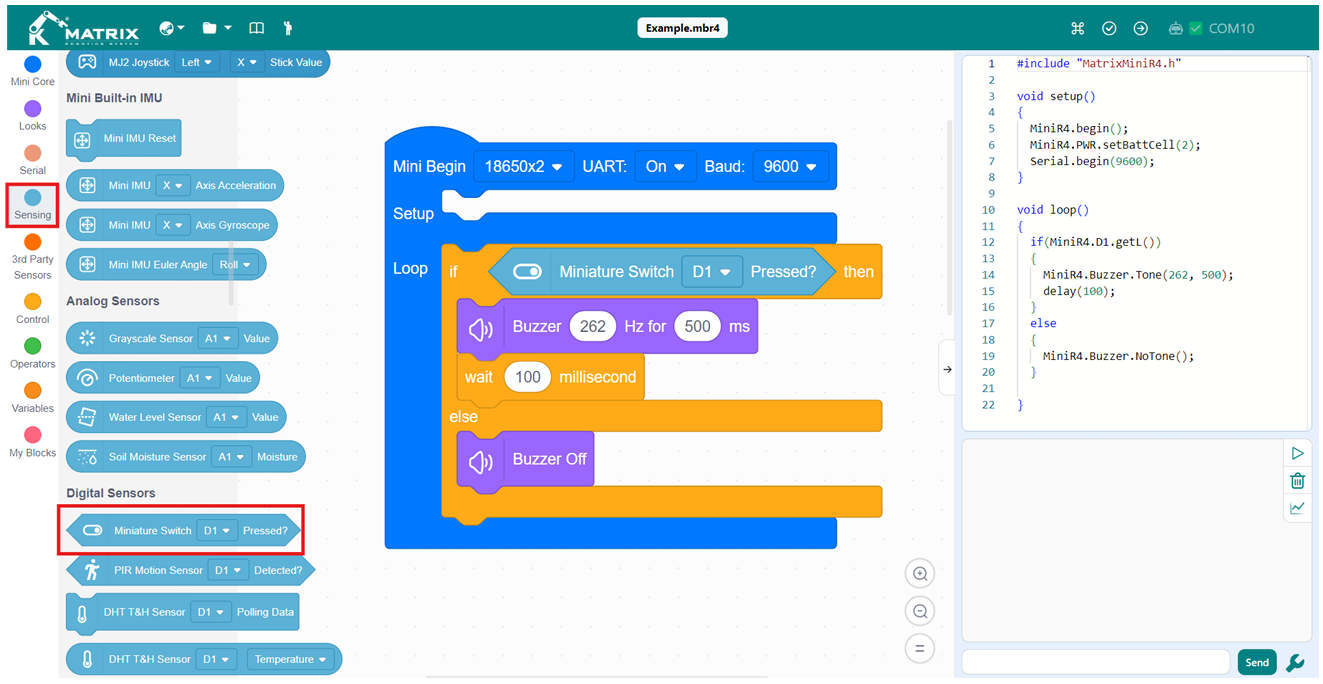

Sample Code

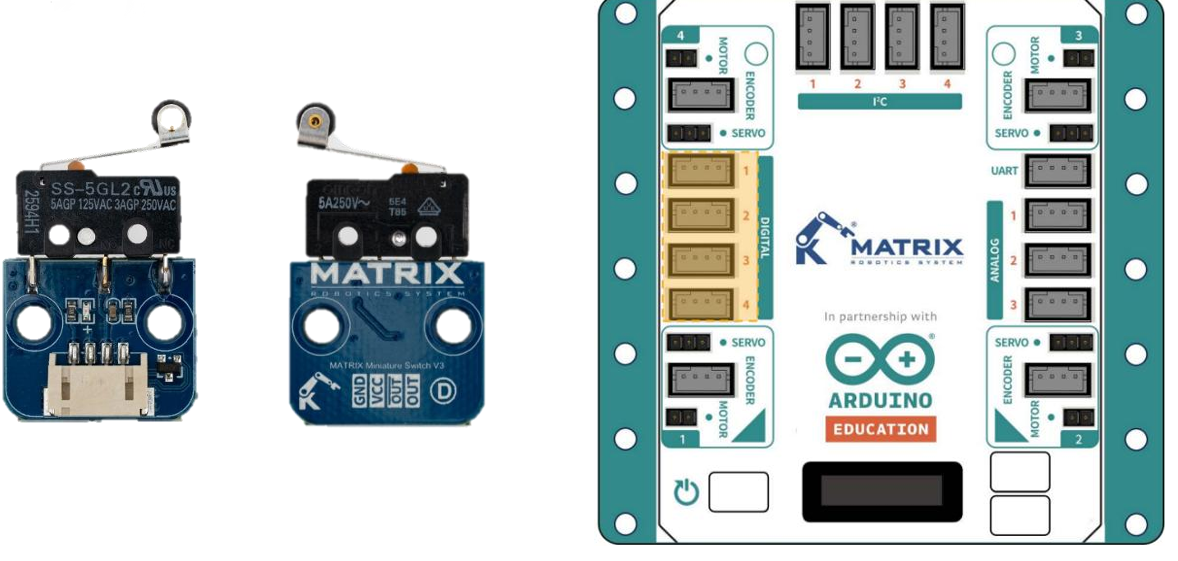

Hardware Connection: Connect the Miniature Switch to the Digital1 port of the MATRIX Mini R4.
Result: The sound will be played on switch press and will be turned off on switch release.
Specification
| Parameter | Min | Typ | Max | Units |
|---|---|---|---|---|
| Supply voltage (VCC) | 3.3 | - | 5 | V |
| Operating force | - | - | 0.49 | N |
| Switch bounce time | - | - | 5 | ms |
