Soil Moisture Sensor

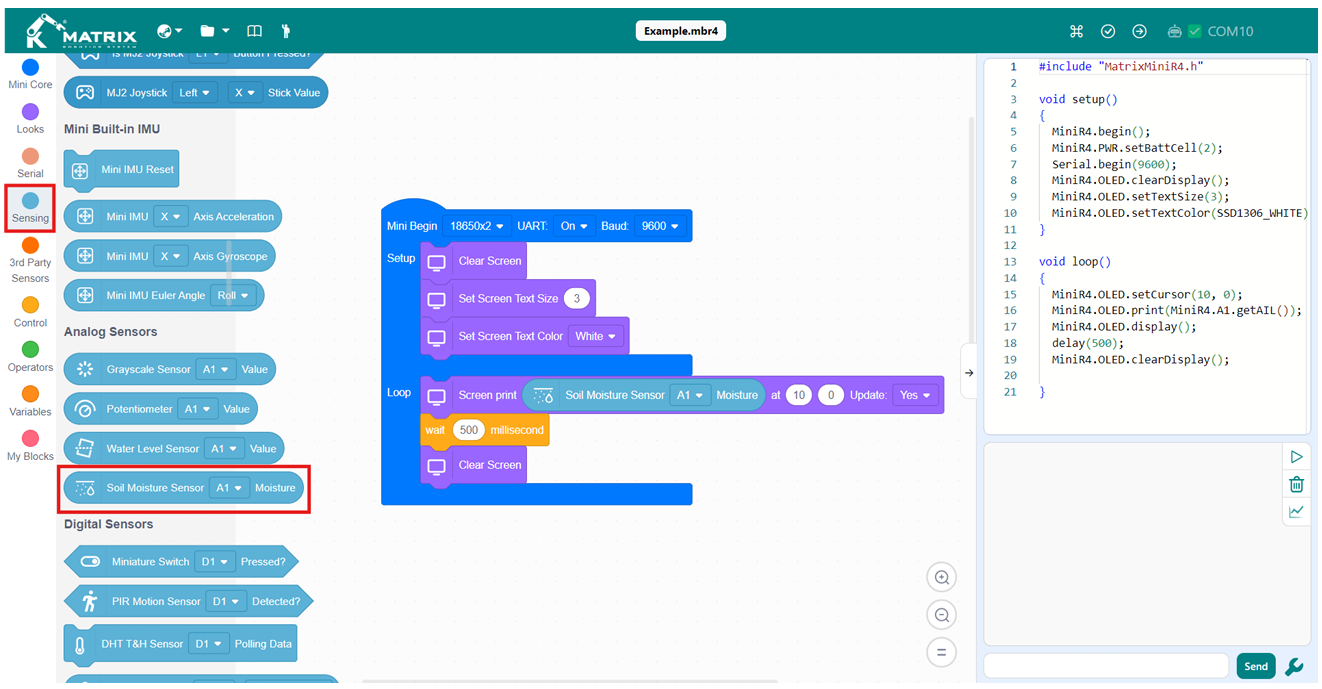

Sample Code

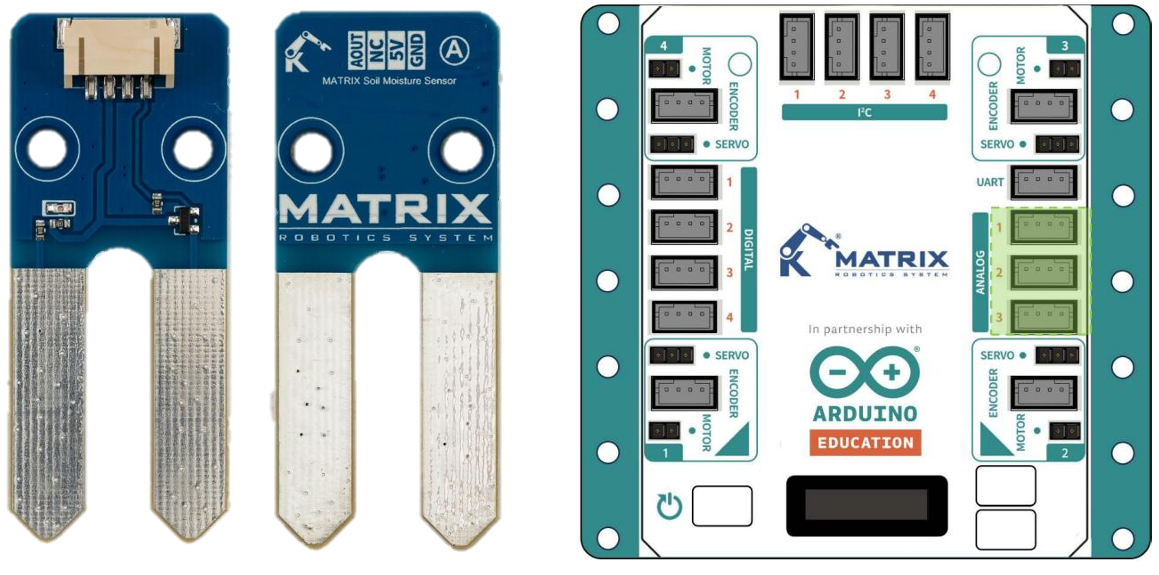

Hardware Connection: Connect the Soil Moisture Sensor to the Analog1 port of the MATRIX Mini R4.

Result: The Soil Moisture Sensor value will be shown on the OLED from 0 to 1023 (from low moisture to high moisture).
