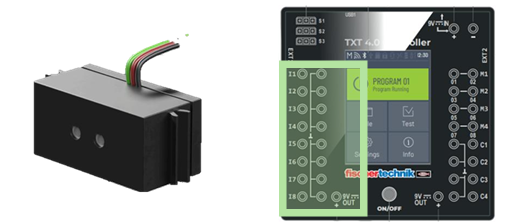

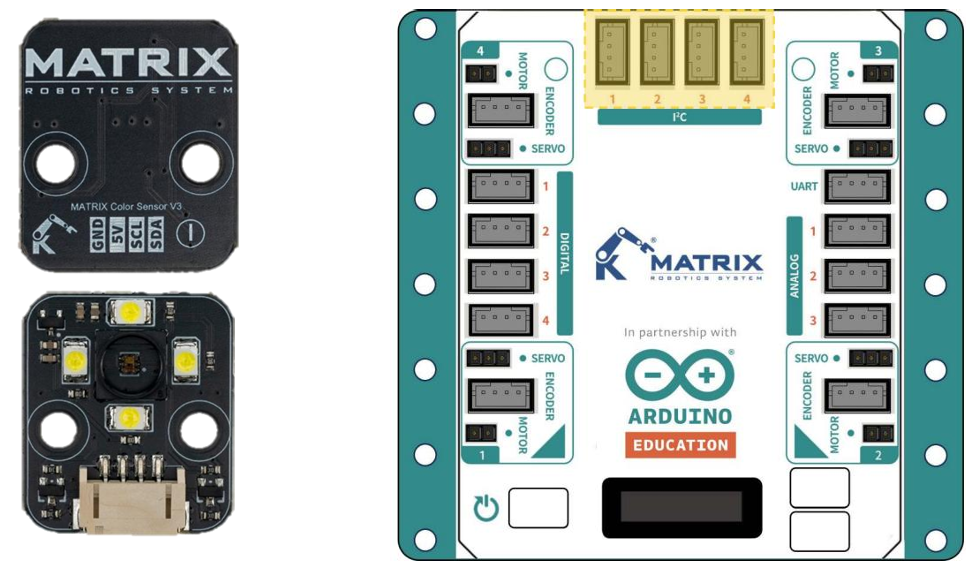

Color Sensor
Programming Blocks
| Block | Function |
|---|---|
 |
It will return the color sensor value, the number is lower on white surfaces and increases as the surface gets darker. |
 |
It will compare the sensor value with the set value and return a logic (true/false) result. |
Electrical characteristics
| Specification | Value |
|---|---|
| Weight | 6.8 g / 7.7 g with flat plugs |
| Supply voltage | 6–10 VDC |
| Current consumption | approx. 15 mA |
| Signal | Analogue value 0–2 VDC (output in mV) |
| Red wire | 9 VDC |
| Green wire | Ground |
| Black wire | Signal |

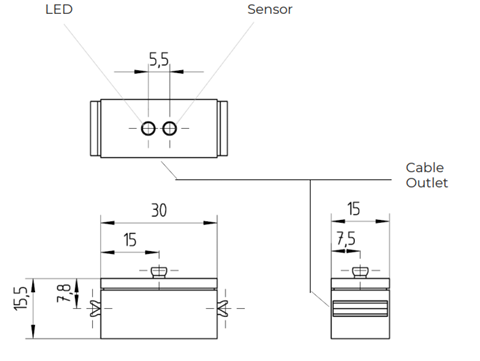

Dimensions

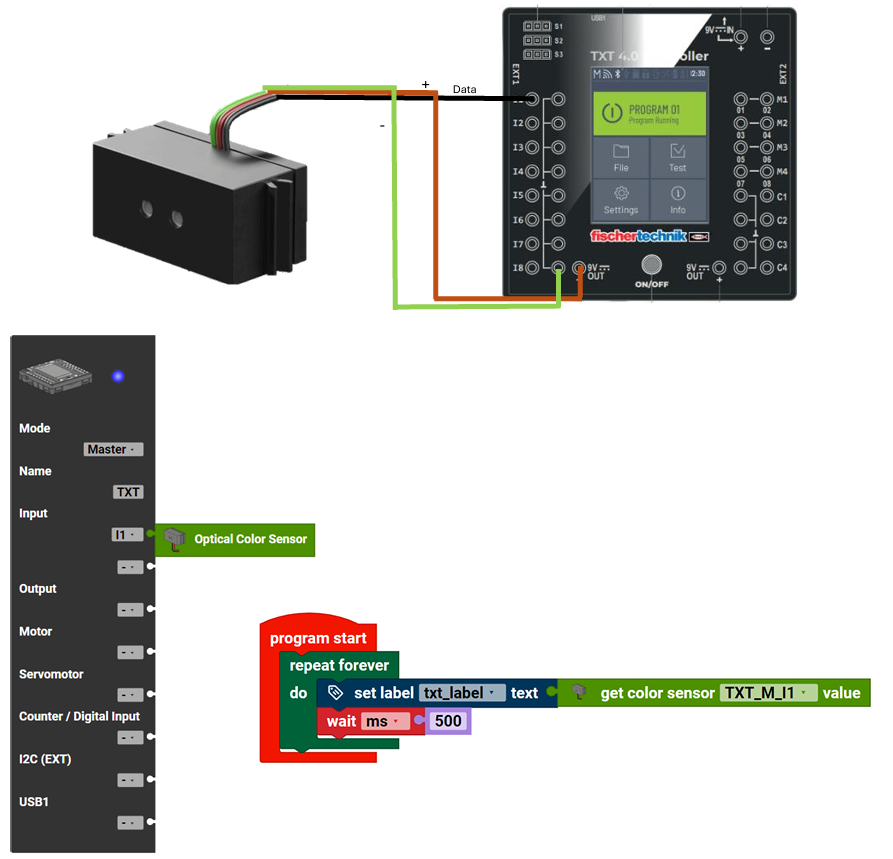

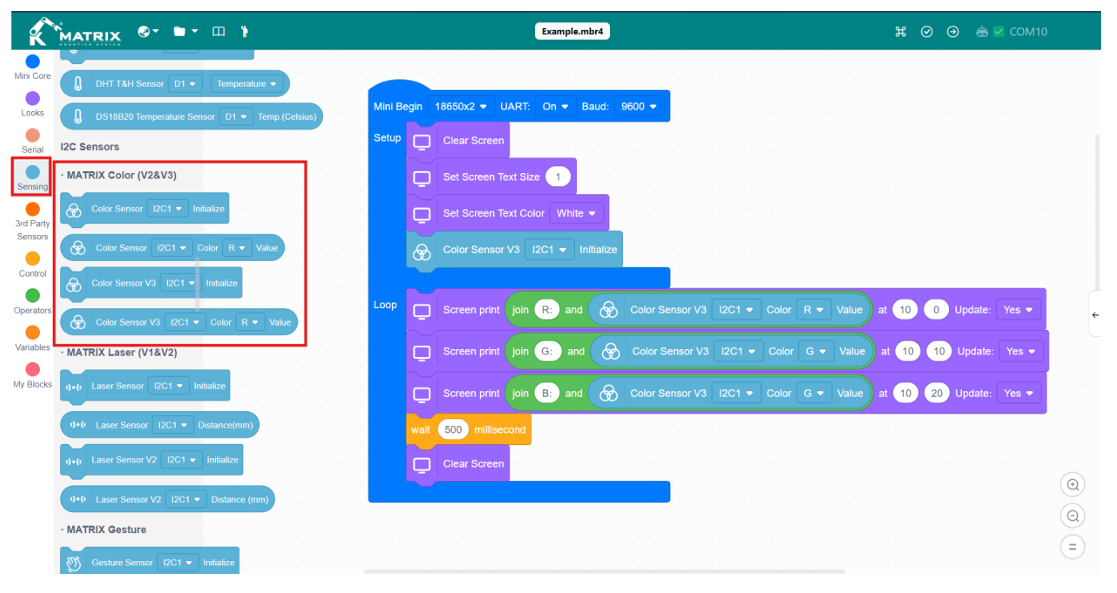

Sample Code
Result: The returning value of the sensor will be shown on the display.

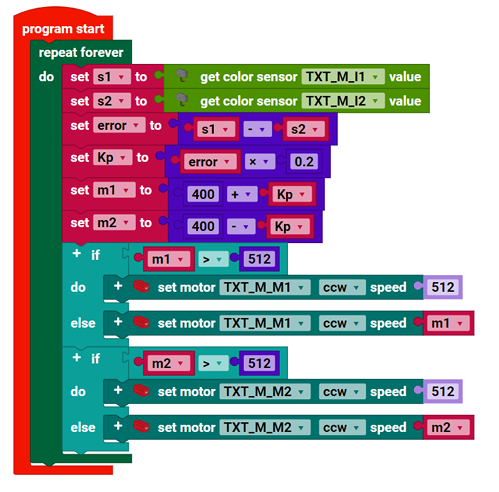

P Controller Line Follower
Hardware Connection: connect the motors and sensors as the sample robot instructions which can
be found at:
https://fiproductmedia.azureedge.net/media/Marketing%20Materials/Operating%20instructions/BA_576109_STEM-CODING-ROBO-MISSION-VERSION-2.pdf
Result: The robot can follow a line smoothly.
Note: The factor of the P controller is 0.2 in this code, which can be adjusted based on robot
performance. Also, the speed of the line following is 400.
