The AI Lens is an easy-to-use AI camera that supports face recognition, colour recognition, card recognition, line tracking, ball recognition, machine learning and more. It encapsulates complex AI concepts into hardware modules that are perceivable, understandable and fun for students. AI training can be completed with just one button, getting rid of tedious training and complex visual algorithms, allowing you to focus more on the conception and implementation of the project.

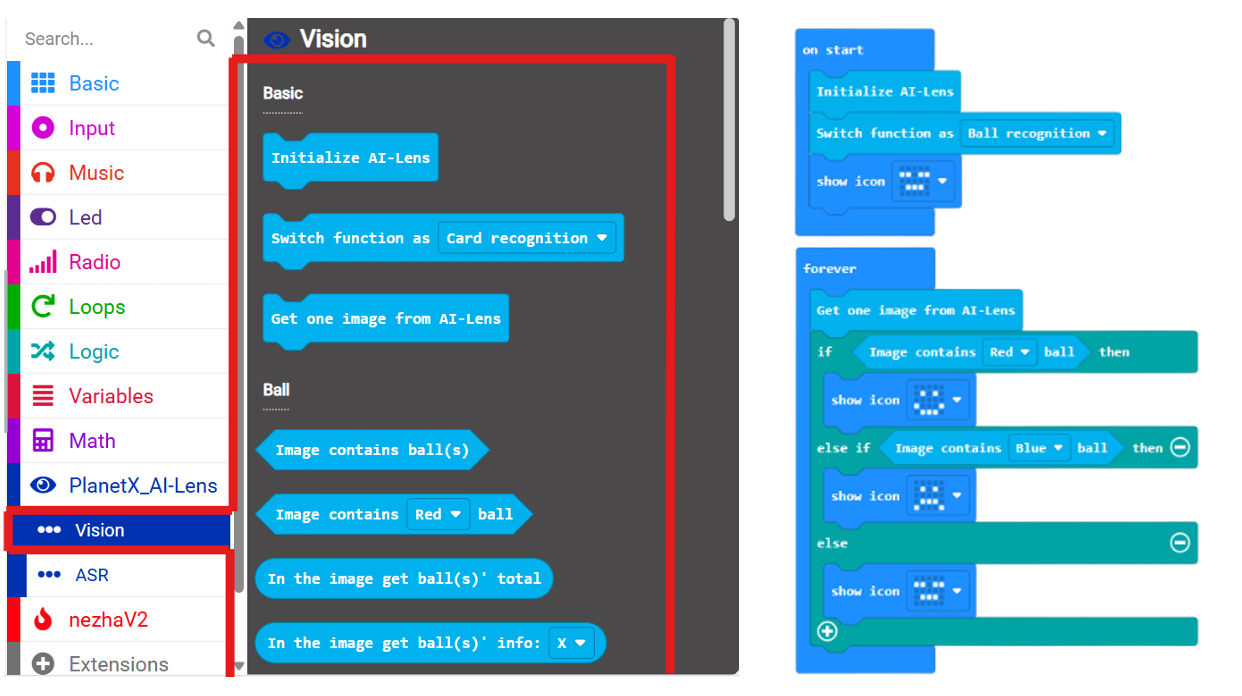

Sample Code

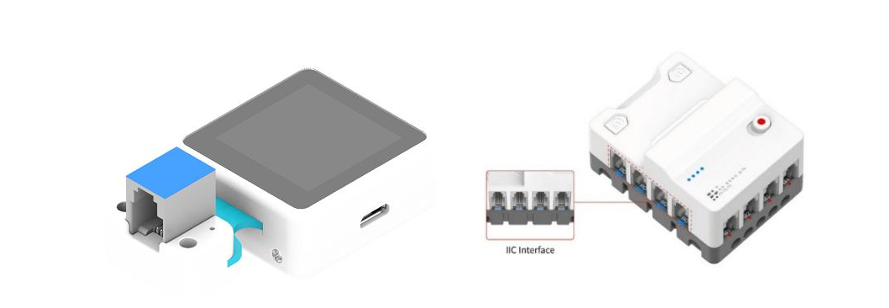

Hardware Connection: Connect the AI Lens to the IIC port on the Nezha Pro Breakout board.
Result: A smile face displays on the Micro:bit if the blue ball is recognized by the AI Lens and a sad face displays if it recognizes a red ball. A poker face displays when none of the balls are detected.
Specification
| Item | Parameter |
|---|---|
| SKU | EF05045 |
| Weight (GW) | Approximately 170g |
| Connection | RJ11 |
| Connection Type | IIC |
| Working Voltage | 3.3V |
| Working Current | 300mA |
