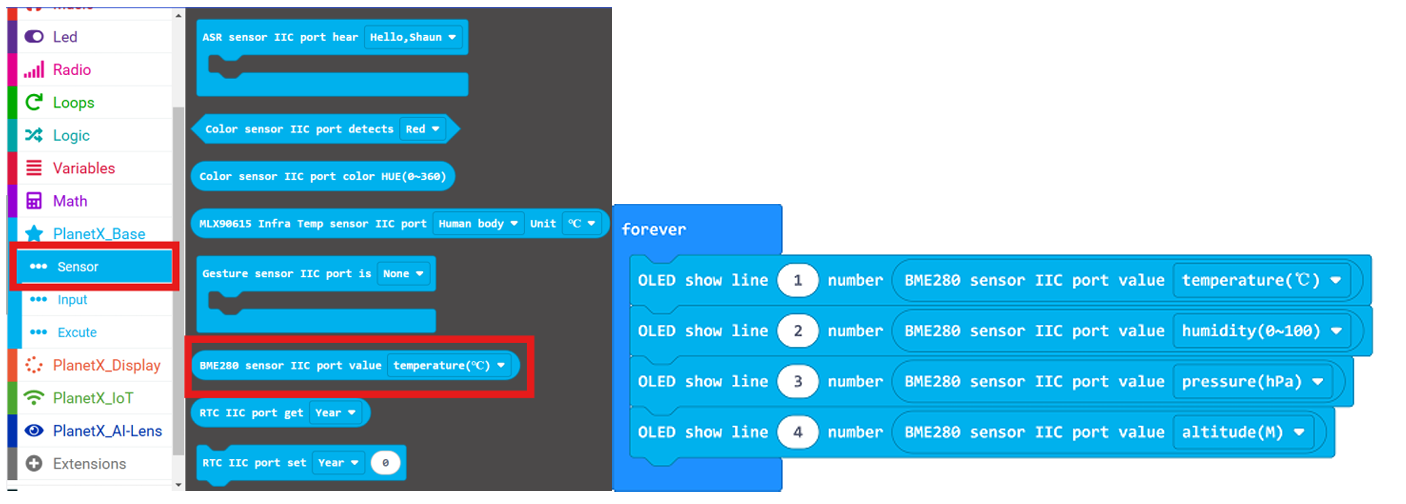

Sample Code

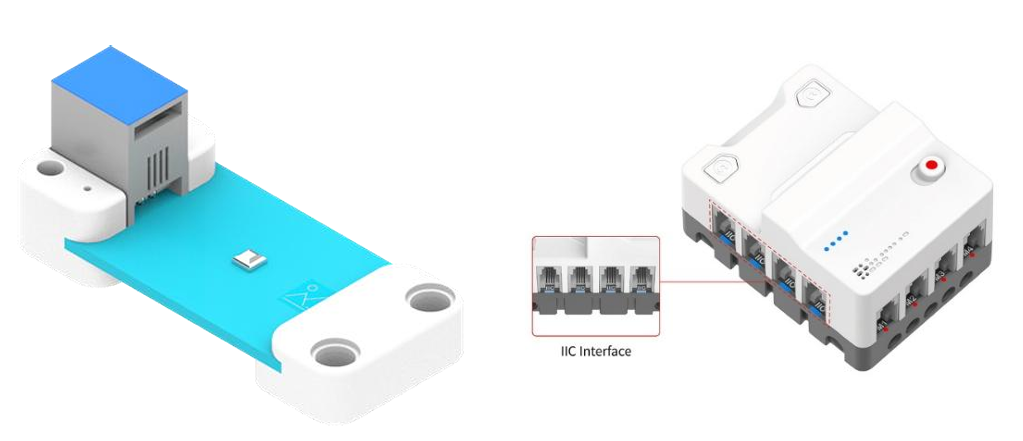

Hardware Connection: Connect the BME280 air pressure sensor to the IIC port and the OLED to the other IIC port in the Nezha Pro Breakout board.
Result: The values of the temperature, humidity, air pressure and the altitude in the current environment display on the OLED screen.
Specification
| Item | Parameter |
|---|---|
| SKU | EF05022 |
| Connection | RJ11 |
| Type of Connection | IIC |
| Working Voltage | 3.3V |
| Core IC | BME280 |
