Note: All the preset colors match the color cards in the AI Lens Kit. For any other colors not listed, it's best to judge them based on their HUE values, as the results can vary depending on the object's color and how light reflects off its surface.

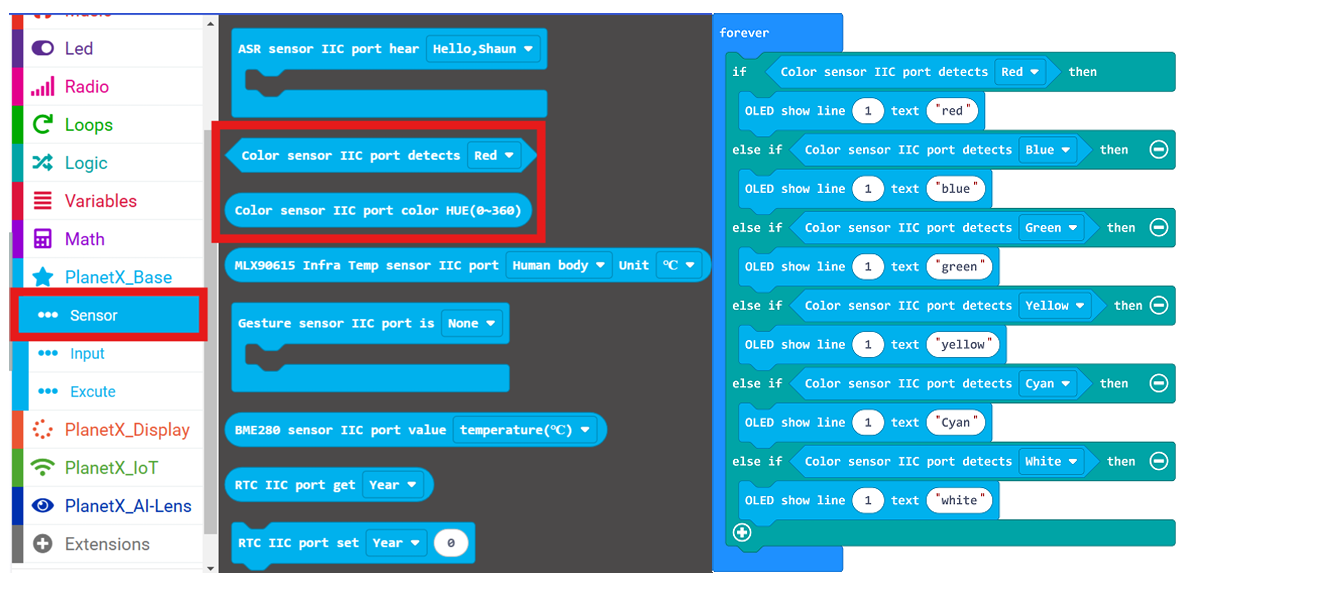

Sample Code

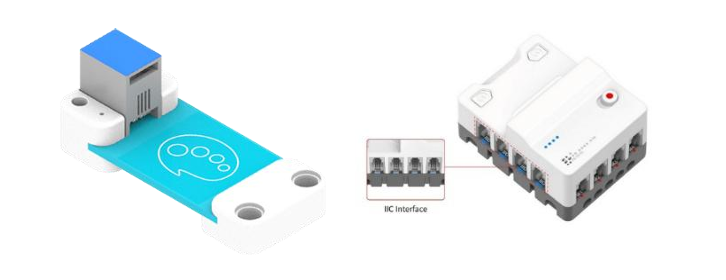

Hardware Connection: Connect the Colour sensor to IIC port and the OLED module to another IIC port in the Nezha Pro Breakout board.
Result: The colour of the detected object displays on the OLED module.
Specification
| Item | Parameter |
|---|---|
| SKU | EF05006 |
| Connection | RJ11 |
| Type of Connection | IIC |
| Working Voltage | 3.3V |
| Size | 55.8 x 23.8 mm |
