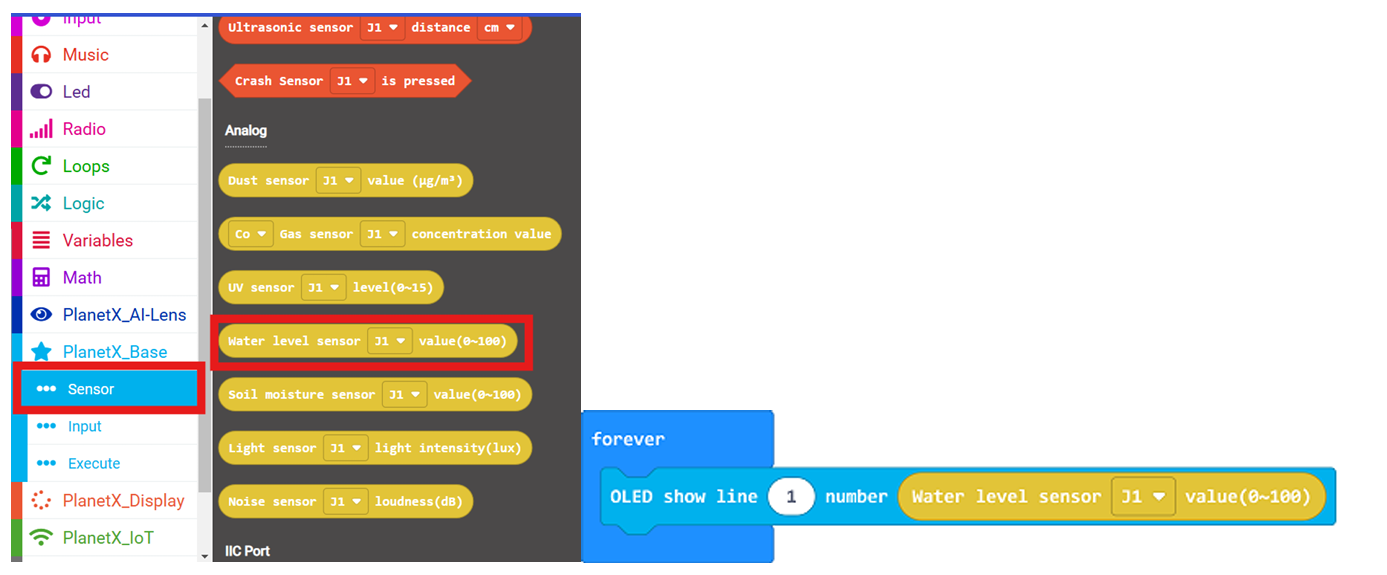

Sample Code

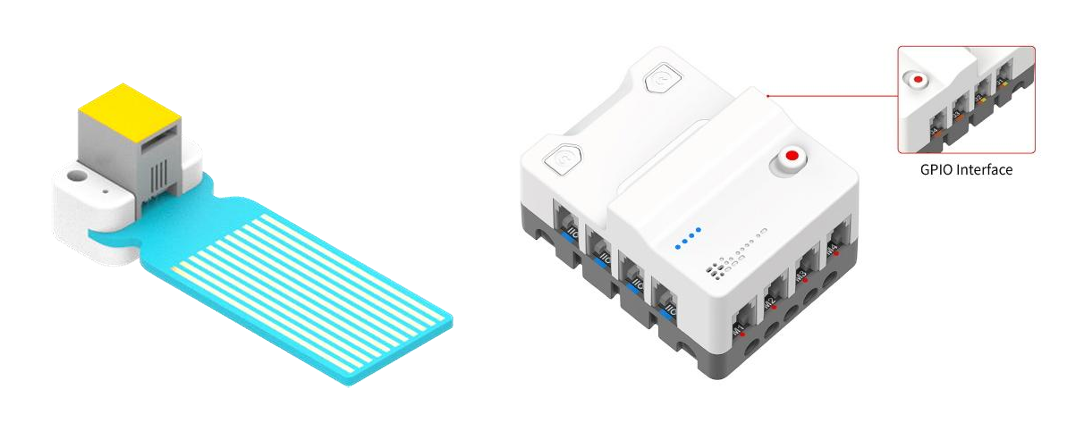

Hardware Connection: Connect the Water level sensor to J1 port and the OLED to the IIC port in the Nezha Pro Breakout board.
Result: The current value of the water level displays on the OLED screen.

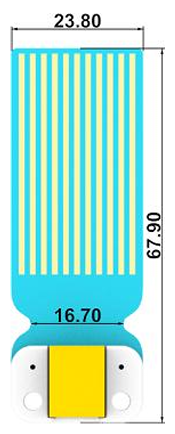

Specification
| Item | Parameter |
|---|---|
| SKU | EF05023 |
| Connection | RJ11 |
| Type of Connection | Analog output |
| Working Voltage | 3.3V |
