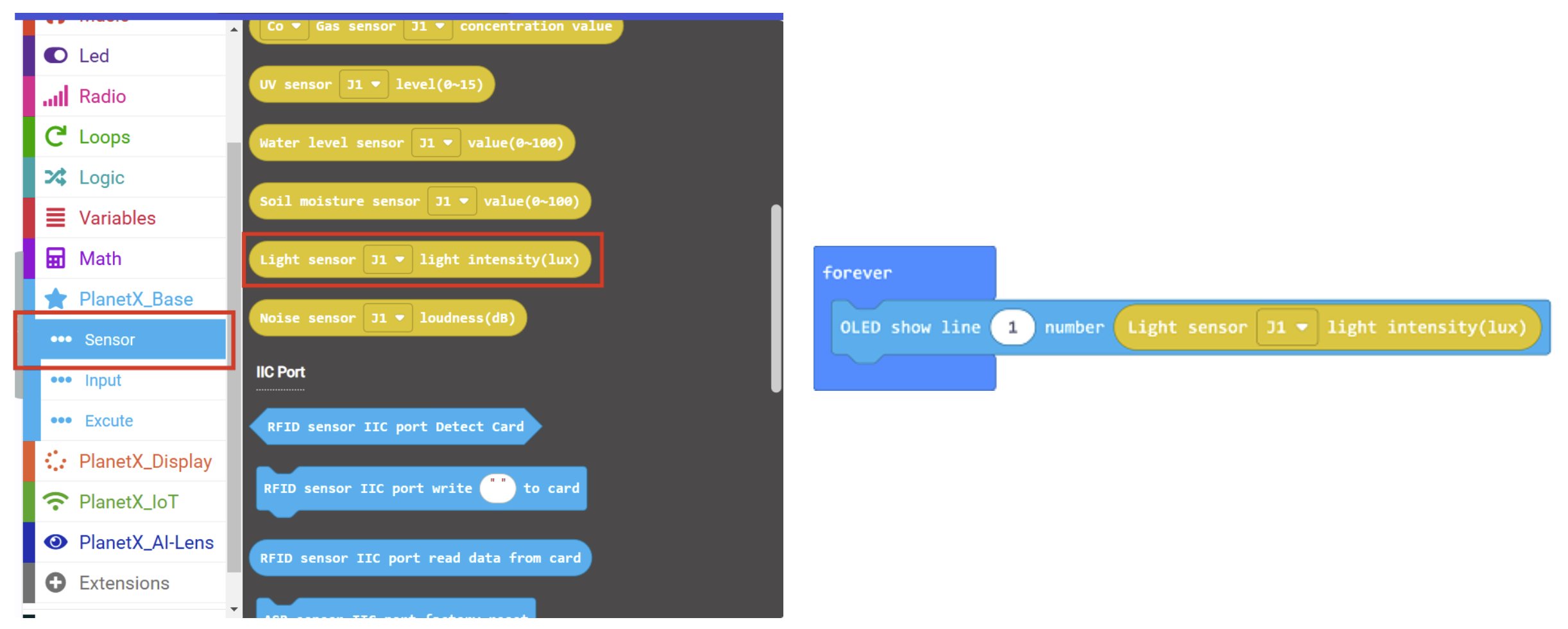

Sample Code

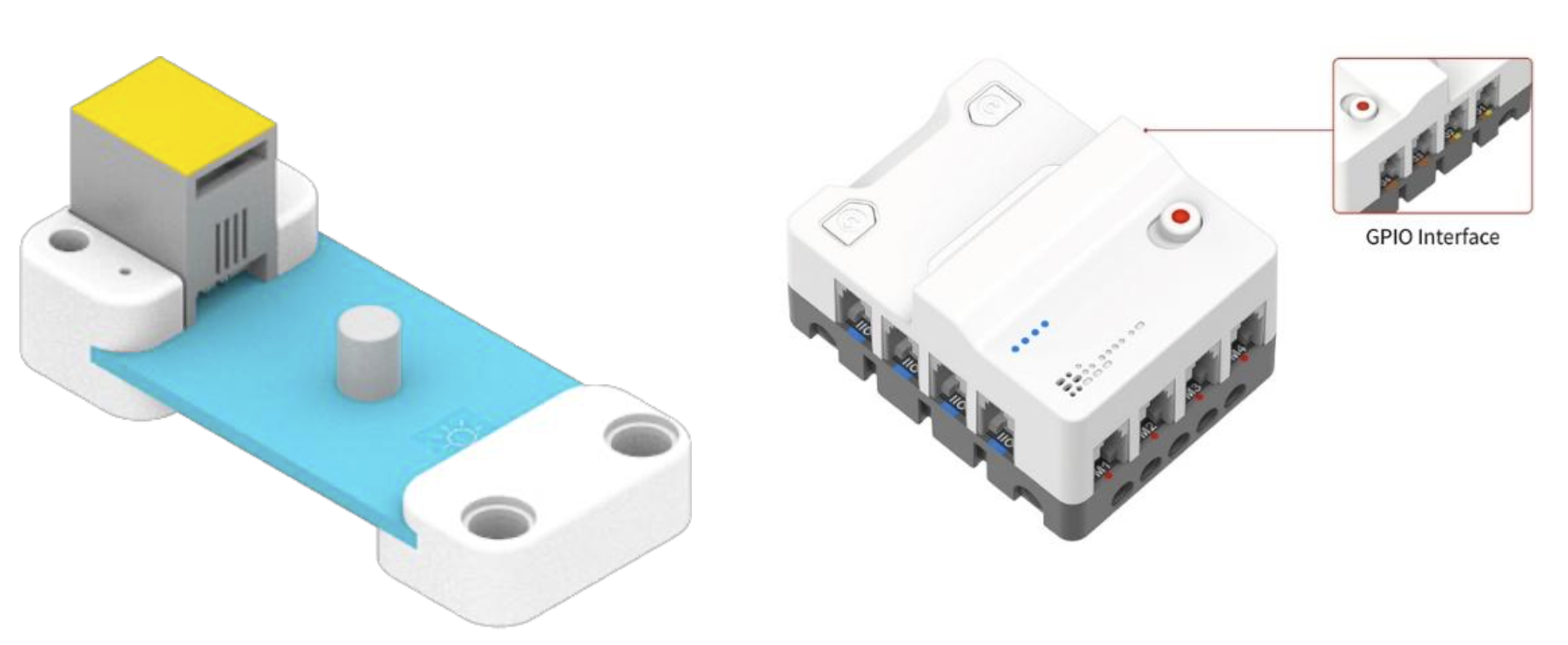

Hardware Connection: Connect the light sensor to J1 port and the OLED module to IIC port in the Nezha Pro Breakout Board.
Result: The light intensity's value displays on the OLED module.

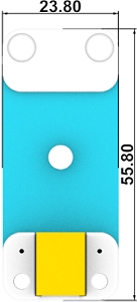

Specification
| Item | Parameter |
|---|---|
| SKU | EF05001 |
| Connection | RJ11 |
| Type of Connection | Analog output |
| Working Voltage | 3.3V |
