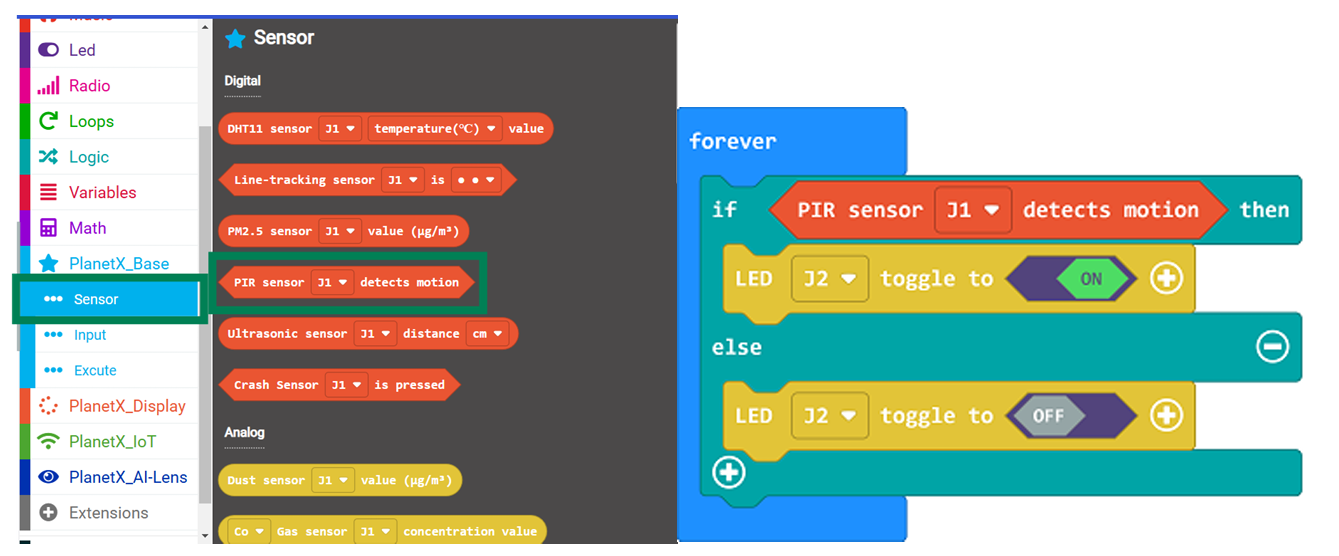

Sample Code

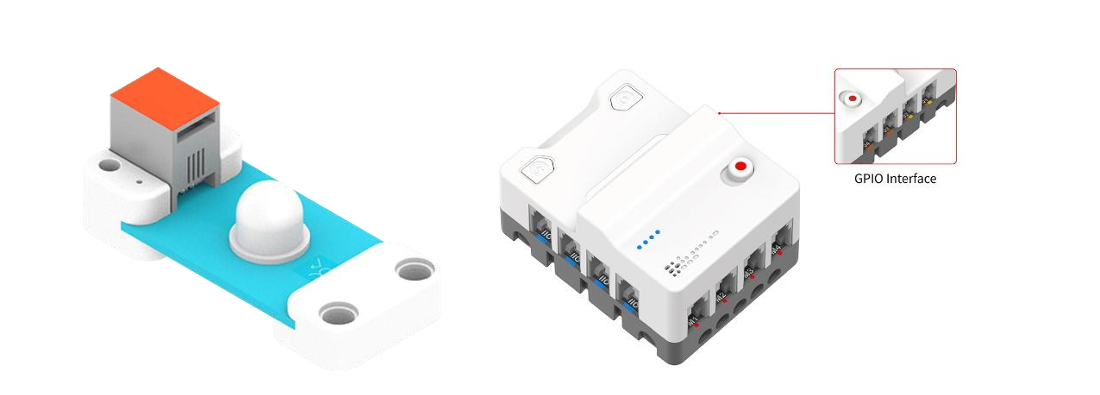

Hardware Connection: Connect the PIR sensor to J1 port and the LED to J2 port in the Nezha Pro Breakout board.
Result: The LED lights on while the motion being detected by the PIR sensor or the LED lights off.

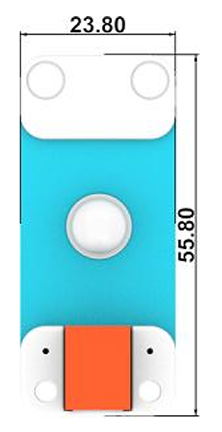

Specification
| Item | Parameter |
|---|---|
| SKU | EF05002 |
| Connection | RJ11 |
| Type of Connection | Digital Output |
| Working Voltage | 3.3V |
