Sample Code

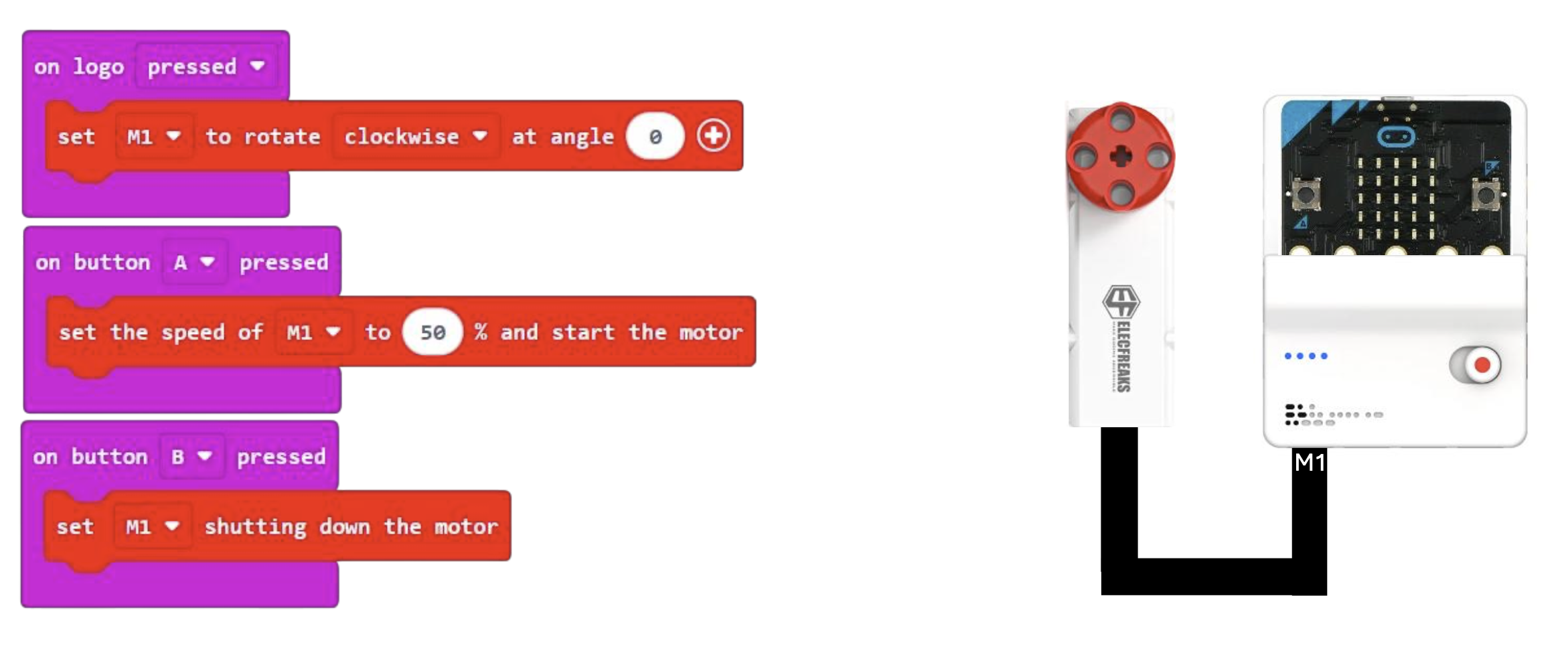

Hardware Connection: Connect the PlanetX Smart Motor to the motor M1 port of the Nezha Pro Breakout Board Pro as shown in the picture.
Result: When button A is pressed, the motor connected to port M1 starts to move with 50% of speed. When button B is pressed, the motor stops. When Micro:bit logo is pressed, the motor will start to move in its first position automatically.
Technical Specification
| Item | Parameter |
|---|---|
| Product Name | PlanetX Smart Brick Motor |
| SKU | EF05071 |
| Operating Voltage | 5.0~9.0V |
| No-load Speed | 125 rpm |
| Stall Torque | ≥29 Ncm |
| Accuracy | ≤3° |
| Operating Travel Angle | 360° * N |
| Connector Interface | RJ11 |
| Building Block Interface | support |
| Speed Reading | support |
| Angle Reading | support |
| Protection Mechanisms | Temperature protection, blocking protection, voltage protection |
| Colour Recognition System | support |
| Weight | 31g |
