Sample Code

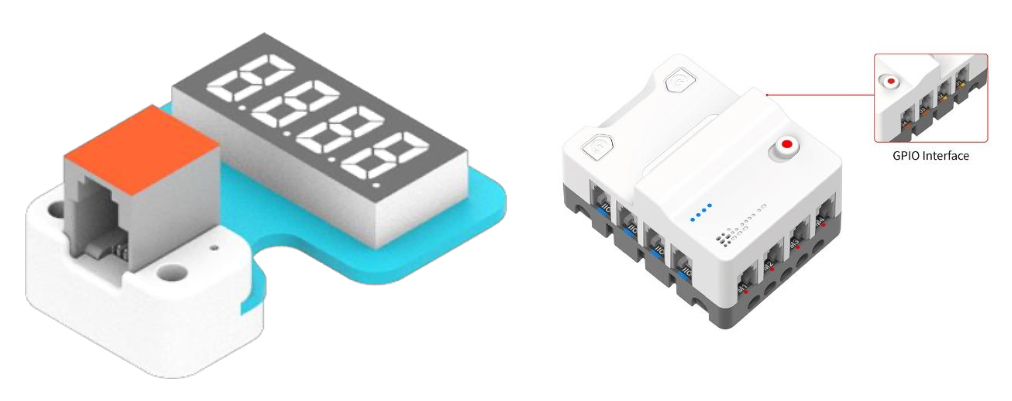

Hardware Connection: Connect the 7-Seg LED Nixietube to J1 port in the Nezha Pro Breakout board.

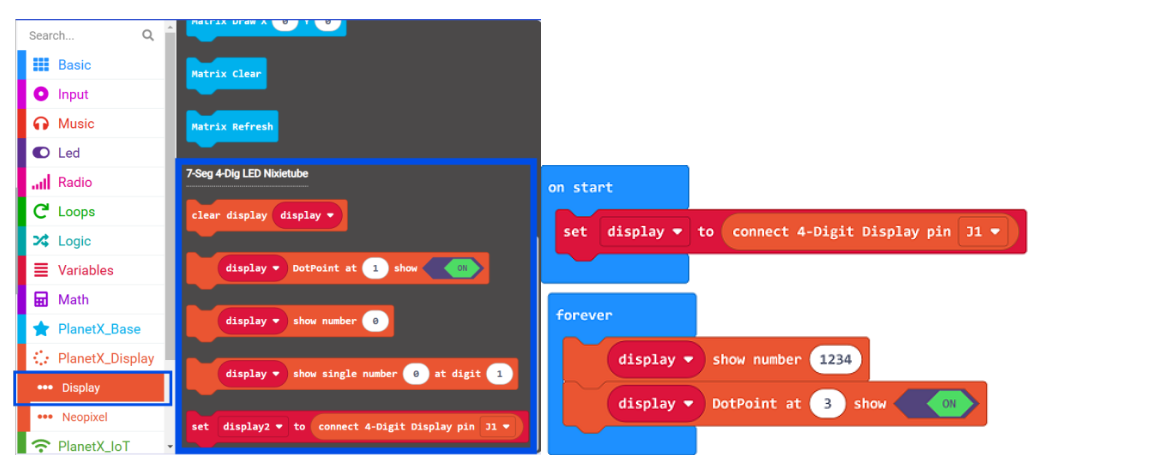

Result: Set it display 12.34.
Specification
| Item | Parameter |
|---|---|
| SKU | EF05026 |
| Connection | RJ11 |
| Type of Connection | Digital input |
| Working Voltage | 3.3V |
| Core IC | TM1637 |
